Water in Oil Detection

Water in Oil Detection Monitoring System in Engine Room

Water in Oil Detection Monitoring & Alarm System is designed to detect Water Contamination in any kind of Oil or Fuel in the marine industry. In particular SELMA Water in Oil Detection System performs monitoring/recording of the amount of moisture contained in vessel’s Main Engine Oil feed line.

water_in_oil_detection_header

Conventionally, water in oil has been measured by a method of determining the moisture content of a sample and expressed in ppm, which is the total absolute water content, thus not giving any indication whether water is dissolved or free. However, due to differences in oil types and difficulty in predicting aging effects, ppm values are often not sufficient for setting alarms in control systems and relative values like water activity (expressed in aw) is used instead. Water activity is the partial vapour pressure of water in the oil or fuel divided by the standard state partial vapour pressure of water.

Water In Oil Monitoring Water In Oil Detection System

Applications of SELMA Water in Oil Detection Monitoring & Alarm System is on the following areas:

  • Main Engine Lub. Oil System
  • Generators Lub. Oil System
  • Stern Tube Lub. Oil System
  • Main Lub. Oil Purifier
  • Generators Lub. Oil Purifier
  • Steering Gear Oil System
  • Hydraulic Systems

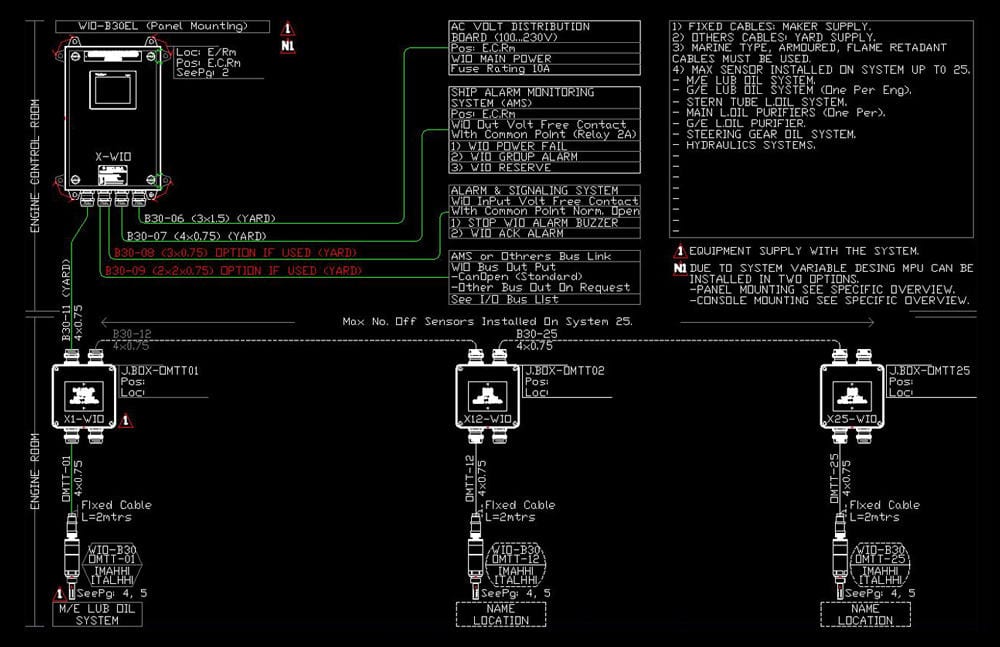

Water In Oil Monitoring Fuel Contamination Sensor

An oil system can contain water in three phases depending on the chemistry of the oil whether mineral or synthetic. Every oil has a degree of water solubility and its specific water-saturation point past which additional water becomes either emulsified or free. Therefore, different oil systems may contain dissolved, emulsified and/or free-water.



Water solubility in oils is mostly exponentially dependent on temperature. Higher temperature oils can absorb more water from the air, with airborne moisture being the most common source of water.

In new oils water solubility is mainly determined by the type and amount of additives, while in aged oils oxidation products have the most significant effect. The aging of oil is a function of activity of water rather its absolute content due to the chemical reactions of the process.



Over-saturated water content in oil results in a two-phase system where excessive free water is formed and co-exists separately from the oil. Free water can then cause corrosion and cavitation type damages to the system.

Moisture Measurement

Conventionally, water in oil has been measured by a method determining the moisture content of a sample and expressed in ppm, which is the total absolute water content, thus not giving any indication whether water is dissolved or free. However, due to differences in oil types and difficulty in predicting aging effects, ppm values are often not sufficient for setting alarms in control systems and relative values like water activity (expressed in aw) is used instead.

Water activity is the partial vapour pressure of water in the oil or fuel divided by the standard state partial vapour pressure of water.

Principle of Operation

Water In Oil Monitoring System Capacitive Sensors provide the value of water activity without temperature corrections or oil-type calibrations. A membrane of the sensor absorbs water molecules, which change its dielectric constant (i.e. a measure of the ability of a material to resist the formation of an electric field within it). The absorption is proportional to the equilibrium relative humidity of oil, thus indicating the margin to saturation.

The Water In Oil Monitoring System generates an alarm at a Pre Alarm Value (PAV) of 0.5 aw or a Main Alarm Value (MAV) of 0.9 aw.

The state-of-the-art Water In Oil Sensor / Transmitter System is perfectly suited for Marine applications. The high accuracy measurement and excellent long-term stability make it ideal for online monitoring of moisture in transformer, lubricating and hydraulic oil, as well as diesel fuel.

Technical Specifications

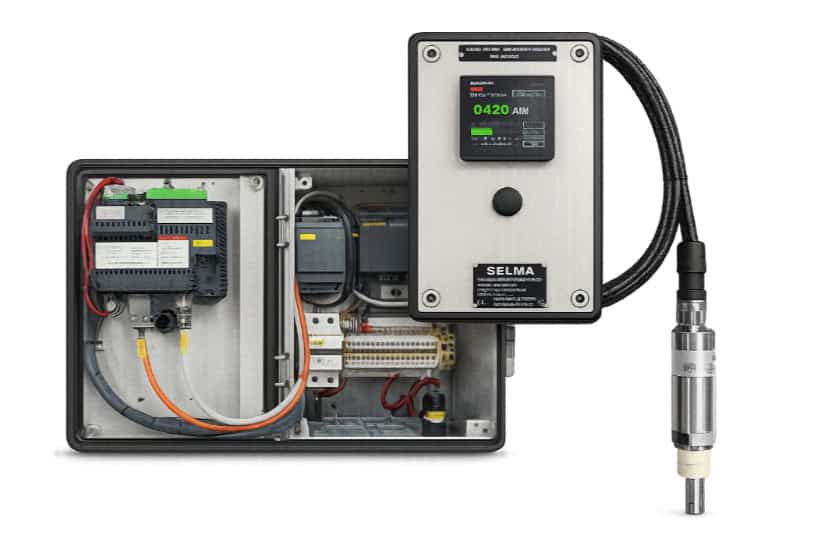

With its compact design and rugged stainless steel housing the Water In Oil Detection Sensor provides the solution of a space-saving installation in the most demanding applications. The Water In Oil Detection Sensor measures water activity (aw), oil temperature (t) and calculates the absolute water content (x). The measured values are available on two 4-20mA outputs and one digital output with MODBUS RTU interface.

Water In Oil Monitoring System for Engine Control Room

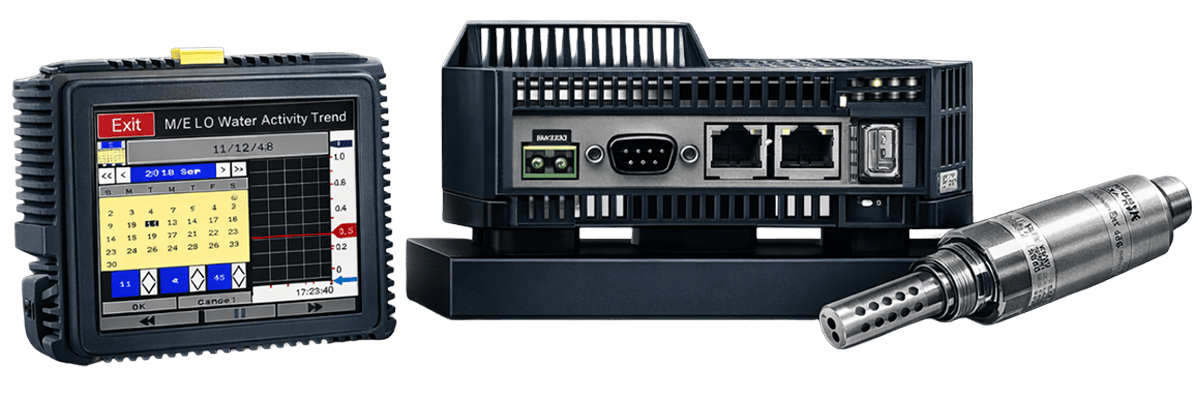

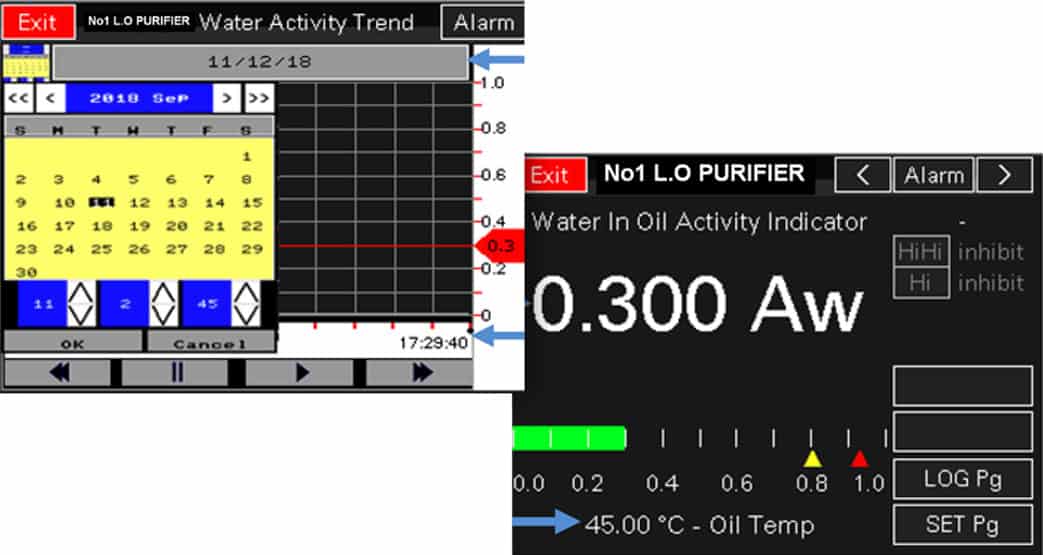

The heavy duty design of the Monitoring/Recorder System is based on Marine Approved Colour Touch Screen

DisplayColour Touchscreen Type
AlarmAudible / Visual
Alarm HistoryIncluded
Modbus RTU Input1 (Wa Water Activity in Oil Activity Monitor)
Digital Inputs4
Digital Relay Outputs6
Output Communication1 Ethernet / 1 CAN Open / 1 RS232-485 for connection to Ship’s Network
Recorder FunctionUSB Stick 16 GB
Power Supply24 V DC
Alarms (Adjustable)Water Activity / Temperature / Sensor Circuit Failure
Panel MountFlush Mounted Prewired with Terminals / Glands
