Bilge Alarm System

Bilges High Level Alarm System based on heavy duty PLC (Programmable Logic Controllers) and marine industrial level switch sensors for detecting liquid on void spaces, specially designed for long lasting operation inside difficult environmental conditions providing reliable level detection.

bildge_alarm_system_top

Bilge Level Alarm Marine Approved is designed as a reliable Bilge Level Alarm System for Ships, using robust components for demanding conditions. Equipped with Bilge Level Alarm with Float Switches, it provides continuous protection and accurate Bilge Level Alarm Monitoring Ships, while the advanced Bilge Level Alarm Control Marine ensures compliance and efficiency. Alongside, the Bilge Level Sensors Marine Approved deliver precise measurements, making them ideal Bilge Level Sensors for Ships. With durable Bilge Level Sensors with Float Switches, the system guarantees effective Bilge Level Sensors Monitoring Marine and integrates seamlessly as a Bilge Level Sensors Control System Ships solution for modern vessels.

SELMA implement design development Bilges High Level Alarm System based on heavy duty PLC (Programmable Logic Controllers) and marine industrial level switch sensors for detecting liquid on void spaces, specially designed for long lasting operation inside difficult environmental conditions providing reliable level detection.

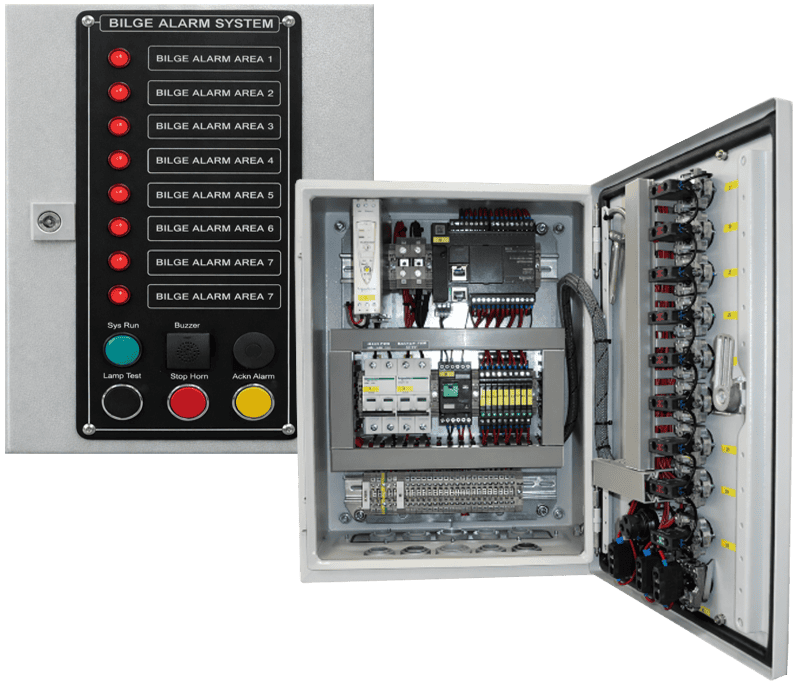

Bridge Main PLC Control Alarm Panel

  • PLC Programmable Logic Controller I/O
  • High Level Alarm (8/ 16 Channels)
  • Audible/Visual Alarm
  • Lamp Test
  • Acknowledge Function
  • System Run
  • Stop Horn
  • Normal Power Supply : 100-220V AC
  • Secondary Power Supply : 24V DC
  • Automatic Change/Over Power Function (Normal/Emergency)
  • Prewired inside Cabinet Complete Power
Bilge Alarm System 034

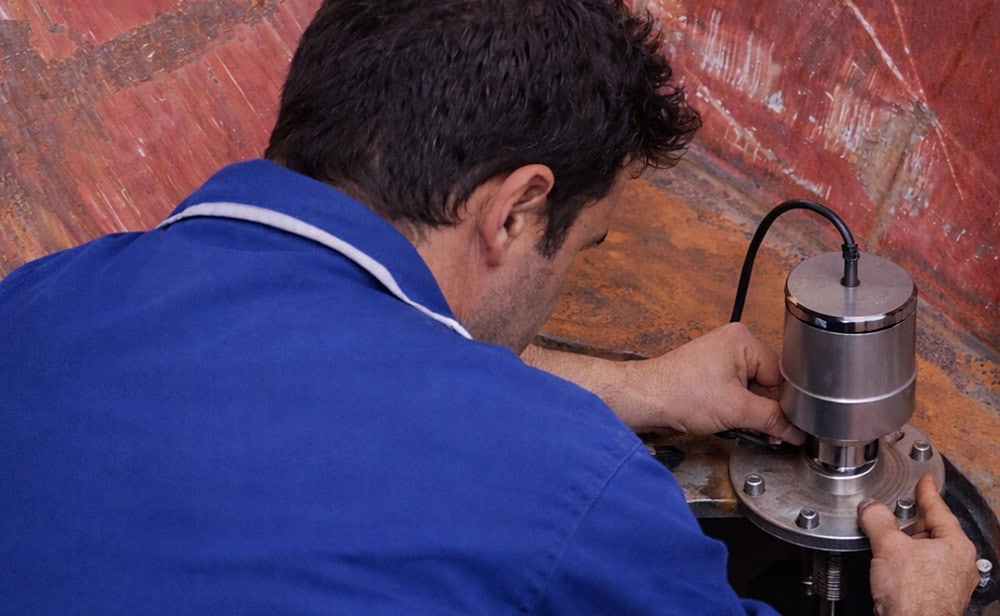

Ex Float Level Swith Sensors

Float Switch Type

ApprovalATEX / DNVGL
MaterialStainless steel 316L
Pressure5,0 bar
Temperature range-10°C up to 80°C
Fluid density1000 kg/m³
HousingAluminum
Ingress protectionIP65
Electrical connectionM20 x 1.5 mm with cable gland
Process connectionMounting thread downwards 2"BSP
Switch function 1Opening on rising level (SPST) 200 mm
FloatStainless steel 316
Number of floats1 pc
Guide tubeOD 12 mm Insertion length (L): as per tank particulars
Float stopFloat strap

Bilge Alarm System 05
